CSÈÄÅ©

Chain Size(mm)

S.W.L
(T)

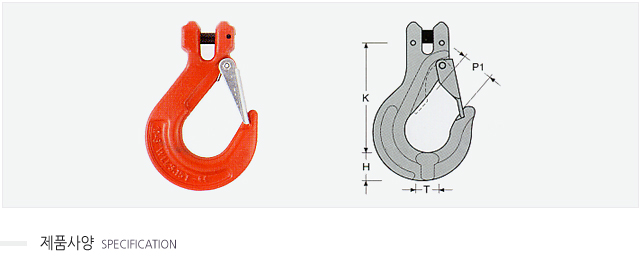

Dimensions(mm) Weight
(kg)
K P1 T H
6-8 1.2 75 22 16 26 0.49
8-8 2 104 26 22.5 30 0.67
10-8 3.2 128 31 29 40 1.36
13-8 5.4 175 45 41 48 3.2
16-8 8.2 180 48 45 52 4
18/20-8 12.5 195 62 52 53 6.7
22 15 225 70 50 60 8
