ES후크 |
|
| Chain Size (in.) |
S.W.L(T) |

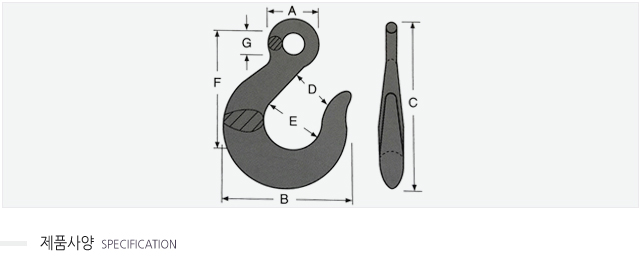

Dimensions(mm) |
Weight(kg) |
| H324 |
A324 |
A |
B |
C |
D |
E |
F |
G |
| 1/4 |
0.88 |
0.88 |
26.92 |
69.85 |
92.96 |
23.88 |
30.23 |
65.02 |
10.92 |
0.4 |
| 5/16 |
1.3 |
1.3 |
31.75 |
77.72 |
107.44 |
26.92 |
31.75 |
74.93 |
12.95 |
0.7 |
| 3/8 |
1.8 |
1.8 |
38.86 |
92.2 |
124.21 |
28.7 |
38.1 |
85.34 |
16 |
1 |
| 7/16 |
2.3 |
2.3 |
42.93 |
110.24 |
114.78 |
39.62 |
45.97 |
98.04 |
17.78 |
1.56 |
| 1/2 |
4.3 |
4.3 |
49.28 |
122.17 |
161.04 |
42.93 |
49.28 |
108.71 |
19.3 |
2.31 |
| 5/8 |
4.2 |
4.2 |
60.45 |
143 |
194.56 |
50.8 |
60.45 |
132.59 |
21.08 |
3.78 |
| 3/4 |
5.7 |
5.7 |
73.15 |
171.45 |
221.74 |
54.1 |
76.2 |
147.32 |
23.11 |
6.56 |
|
|
|
|
|
|
|
