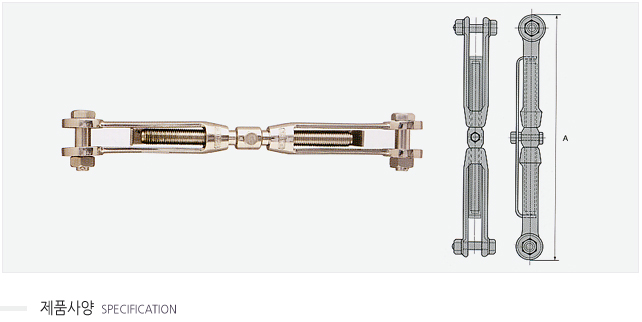

레경스크류 |
|
|
Nominal Size(mm) |
Dia. of wire rope applied(mm) |
Norminal size of wire socket(T) |
S.W.L |
Calculated mass(kg) |
|
14 |
14 |
- |
2.1 |
5.97 |
|
16 |
16 |
16 |
2.6 |
8.58 |
| 18 |
18 |
18 |
3.3 |
11.6 |
| 22 |
20 and 22.4 |
20 and 22 |
5.1 |
14.8 |
| 24 |
24 |
24 |
5.9 |
19.4 |
| 25 |
25 |
25 |
6.9 |
23.9 |
| 30 |
28 and 30 |
28 and 30 |
9.2 |
30.2 |
| 32 |
32 |
32 |
10.5 |
36.2 |
| 34 |
34 |
34 |
11.5 |
43.2 |
| 36 |
36 |
36 |
13 |
51.1 |
| 38 |
38 |
38 |
14.5 |
59.9 |
| 40 |
40 |
40 |
16.5 |
70.7 |
| 42 |
42.5 |
42 |
18.5 |
93.5 |
| 45 |
45 |
45 |
21 |
105 |
| 48 |
47.5 |
48 |
23 |
117 |
| 50 |
50 |
50 |
25.5 |
124 |
|
|
|
|
|
|
|
