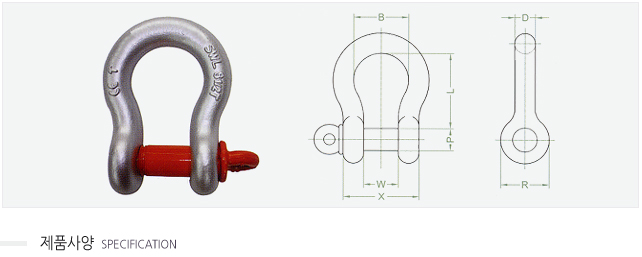

단조샤클BC

Size(inch)

S.W.L
(ton)
Dimensions(mm) Weight
(kg)
B D L P R W X
5/16 0.75 20 8 32 10 25 13.5 29.5 0.1
3/8 1 24 10 36 12 28 17 37 0.1
1/2 2 34 13 48 16 30 21 47 0.3
5/8 3.25 43 16 60 19 40 27 59 0.6
3/4 4.75 51 19 73 22 48 32 70 1
7/8 6.5 58 22 85 25 54 37 81 1.5
1 8.5 68 25 95 28 60 43 94 2.2
1-1/8 9.5 74 28 109 32 67 46 103 3.2
1-1/4 12 83 32 119 35 76 51 115 4.3
1-3/8 13.5 92 35 134 38 84 57 127 5.9
1-1/2 17 98 38 146 42 92 60 136 7.7
1-3/4 25 127 45 177 50 109 73 163 14.2
2 35 146 51 197 58 127 83 185 20.3
