´ÜÁ¶»þŬBB

Size(inch)

S.W.L
(ton)
Dimensions(mm) Weight
(kg)

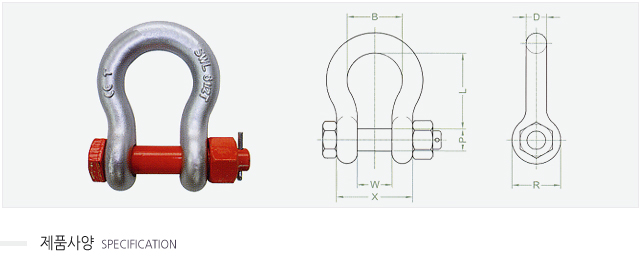

B D L P R W X
1/2 2 34 13 48 16 30 21 47 0.4
5/8 3.25 43 16 60 19 40 27 59 0.7
3/4 4.75 51 19 73 22 48 32 70 1.1
7/8 6.5 58 22 85 25 54 37 81 1.8
1 8.5 68 25 95 28 60 43 94 2.6
1-1/8 9.5 74 28 109 32 67 46 103 3.8
1-1/4 12 83 32 119 35 76 51 115 5
1-3/8 13.5 92 35 134 38 84 57 127 6.8
1-1/2 17 98 38 146 42 92 60 136 8.4
1-3/4 25 127 45 177 50 109 73 163 14.9
2 35 146 51 197 58 127 83 185 22.6
2-1/2 55 184 69 267 70 150 115 253 46.4
3 85 200 79 300 83 168 128 292 79
