´ÜÁ¶»þŬSC

Size(inch)

S.W.L
(ton)

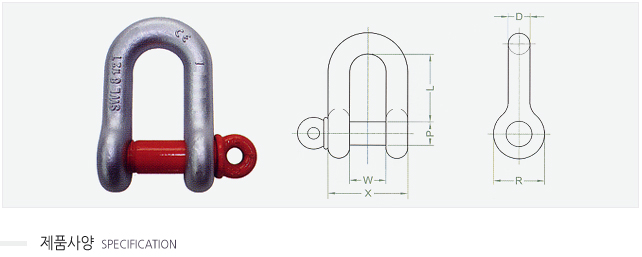

Dimensions(mm) Weight
(kg)
D L P R W X
1/2 2 13 42 16 30 21 47 0.3
5/8 3.25 16 51 19 40 27 59 0.5
3/4 4.75 19 60 22 48 32 70 0.9
7/8 6.5 22 71 25 54 37 81 1.4
1 8.5 25 82 28 60 43 94 2
1-1/8 9.5 28 92 32 67 46 103 2.8
1-1/4 12 32 99 35 76 51 115 3.9
1-1/2 17 38 121 42 92 60 136 7
1-3/4 25 45 146 50 109 73 163 12.5
2 35 51 162 58 127 83 185 17.8
