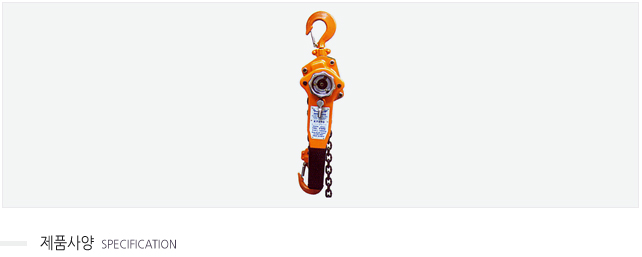

레바블록 |
|
|
Capacity(T) |
Std. Lift(m) |
Test Load(kN) |
Headroom(mm) |
Effort on Lever to Lift Full Load(kg) |
No. of Load Chain Falls |
Dia. of Load Chain(mm) |
Length of Lever Handle(mm) |
Net Weight(kg) |
Additional 1M Lift(kg) |
|
0.75 |
1.5 |
11.3 |
325 |
14 |
1 |
6 |
280 |
7 |
0.8 |
| 1 |
1.5 |
15 |
325 |
18 |
1 |
6 |
280 |
7 |
0.8 |
| 1.5 |
1.5 |
22.5 |
380 |
22 |
1 |
8 |
410 |
11 |
1.4 |
| 3 |
1.5 |
45 |
480 |
32 |
1 |
10 |
410 |
21 |
2.2 |
| 6 |
1.5 |
90 |
620 |
34 |
2 |
10 |
410 |
31 |
4.4 |
|
|
|
|
|
|
|
