트롤리(기어형) |
|
|
Rated Capacity(T) |
Test Load(kN) |
Min. Radius of Cueve(m) |

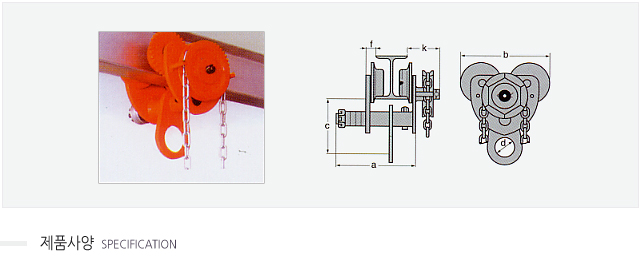

Dimensions(mm) |
I-Beam Width(mm) |
Net Weight(kg) |
| a |
b |
c |
d |
e |
f |
k |
|
0.5 |
7.35 |
1 |
178 |
179 |
120 |
35 |
56 |
18 |
75 |
75-125 |
9.2 |
| 1 |
14.71 |
1 |
189 |
208 |
128 |
45 |
67 |
24 |
80 |
75-125 |
12.1 |
| 2 |
29.42 |
1 |
221 |
233 |
145 |
60 |
80 |
27 |
82 |
100-150 |
14.4 |
| 3 |
44.13 |
1.3 |
228 |
280 |
164 |
70 |
100 |
30 |
90 |
100-150 |
25 |
| 5 |
61.29 |
1.4 |
262 |
306 |
177 |
80 |
112 |
35 |
100 |
125-175 |
37.1 |
|
|
|
|
|
|
|
